Air heating units VNU
| VNU-40-01 U3 | VNU-50-01 U3 |
| VNU-55-01 U3 | VNU-65-01 U3 |
| VHU-70-01 U3 | VNU-90-01 U3 |
For an accurate selection of this type of equipment, we suggest that you fill out a questionnaire and send it to our specialists in the order
Download the questionnaireDo you have questions? Call:
+7 (4942) 622-023Air-heating unit VNU is designated for heating, ventilating, thermal curtains of industrial and civil buildings, offices, shops, industrial premises of agricultural purpose.
Heat-transfer agent – hot (superheated) water, having temperature not more than 190° С and pressure not more than 1,2 MPa.

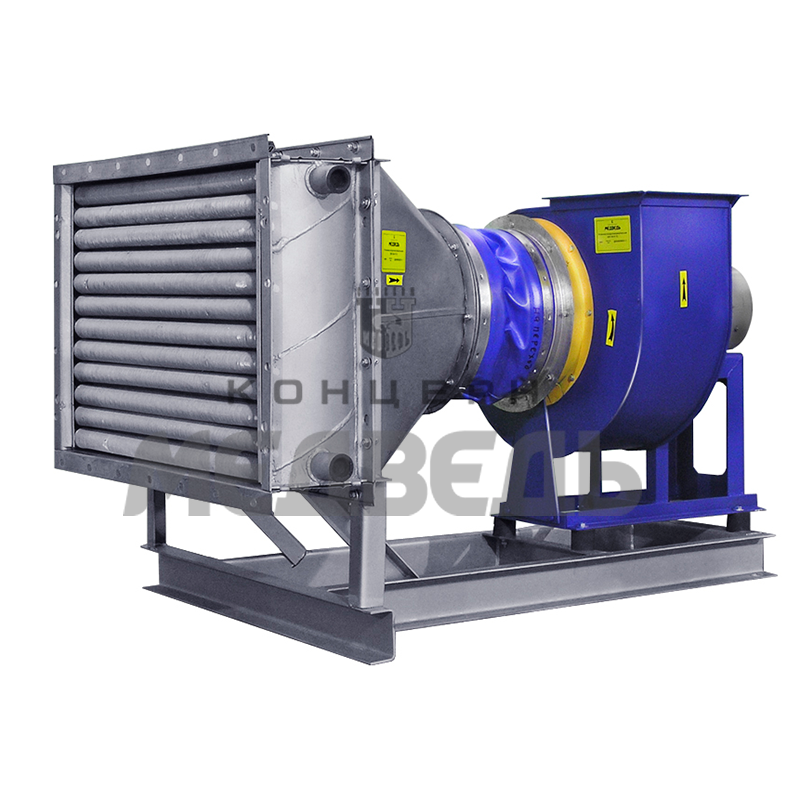

Unit ВНУconsists of water calorifer and radial fan VC14-46 №3,15, connected with each other by a confusor via soft insert and installed on common welded frame.
Upon Customer’s desire unit VNU may be equipped with control unit designated for fan electric motor control.
|
Reference
designation
|
Equipped with
calorifer
|
Motor,
KW / rpm
|
Air capacity, m3/h
|
Pressure,
Pa
|
Heat capacity, KW
(For temperature
mode of heating
jeat-carrier agent,
° С)
|
The air
temperature
at the inlet
and outlet, °
C
|
Weight,
kg,
not more
|
| VNU-40-01 | KSk 3-6 | 1,1/1500 | 3600 | 770 | 52,3 | -20/22 | 140 |
| VNU-50-01 | KSk 4-6 | 730 | 59,9 | -20/28 | 147 | ||
| VNU-55-01 | KSk 3-7 | 790 | 57,7 | -20/26 | 145 | ||
| VNU-65-01 | KSk 4-7 | 750 | 65,1 | -20/32 | 155 | ||
| VNU-70-01 | KSk 3-8 | 2,2/1500 | 5000 | 790 | 78,8 | -20/43 | 152 |
| VNU-90-01 | KSk 4-8 | 760 | 89,1 | -20/51 | 162 |
Overall dimensions of air-heating units VNU
|
Reference
designation
|
Dimensions,мм | |||
| a | b | c | e | |
| VNU-40-01 У3 | 400 | 432 | 602 | 650 |
| VNU-50-01 У3 | ||||
| VNU-55-01 У3 | 500 | 532 | 727 | 775 |
| VNU-65-01 У3 | ||||
| VNU-70-01 У3 | 600 | 632 | 852 | 900 |
| VNU-70-01 У3 | ||||
