Exhaust fans IDF -22Х2, IDF 24Х2, IDF-24Х2-0,62GM

IDF-22×2-0,62	IDF-22×2-0,62P
IDF-24×2-0,62	IDF-26×2-0,62
IDF-26×2-0,62P	IDF-28,8×2-0,936
IDF-38×2	IDF-22x2F
IDF-24x2F	IDF-26x2F

Download the description in PDF

For an accurate selection of this type of equipment, we suggest that you fill out a questionnaire and send it to our specialists in the order

Download the questionnaire

Order button

Do you have questions? Call:

+7 (4942) 622-023

General information

• Medium and high pressure
• Тwo-way suction
• Left and right rotation
• Backward-bent blades
• 32 blades (16X2)

Description

Centrifugal induced-draft fans with two-way suction of IDF-22×2-0,62 and IDF-24×2-0.62 types are used to suck flue gases from furnaces of solid-fuel boilers with the steam-generating capacity between 320… 480 t/h equipped with effective dry fly ash separators. The fans can also be used to suck flue gases from gas-and-oil boiler furnaces of the same capacity.

The usability of exhaust fans of IDF-type under “wet” separation should be determined by the ability of blades to collect dust. The usability isto be tested on the pilot lot of units. It is also possible to use IDF-22×2-0,62 and IDF-24×2-0.62 in units used to handle non-aggressive gases with the dust content not exceeding 2 g/m3 whose abrasive power and adhesive performance are not different from those of flue gases.

The Pitot curves show that the exhaust fans can be used separately or as part of serial-parallel operations.

Exhaust fans of IDF type are intended for lengthy use indoors as well as outdoors, in moderateclimates (climate grade U, location category 1,2,3,4 according to GOST 15150-69). The temperature in the scroll casing should not be lower than -30C. The maximum inlet temperature should not exceed 250C.

The rpm values are 750 and 600 rpm.

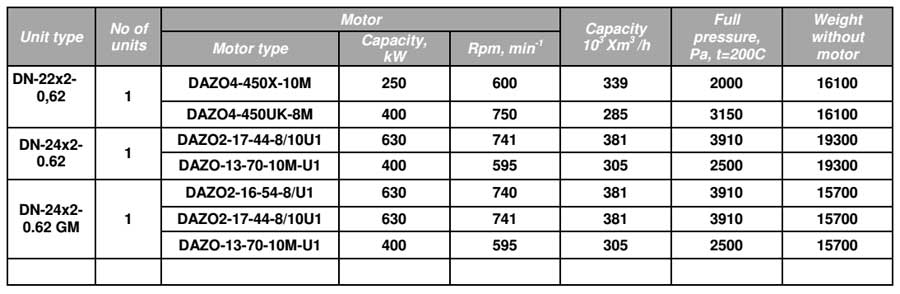

Technical specifications of IDF-type exhaust fans

**IDF-2 №22-38**
Machine size	Capacity, m3/s	Full pressure, Pa	Maximum efficiency, not less, %	Rotational speed, rpm	Electric motor				Weight without electro motor, kg
Machine size	Capacity, m3/s	Full pressure, Pa	Maximum efficiency, not less, %	Rotational speed, rpm	Size	Power, kWt	Rotational speed, rpm	Voltage, V	Weight without electro motor, kg
IDF-22-2-0,62 (IDF-22-2-0,62GМ)	226 000	1 976	85	600	DАZО4-450Х-10U1	250	600	6 000	15 900 (13 900)
	283 000	3 099		750	АОD-400/200-8/10U1	400/200	750/600	6 000
	283 000	3 099		750	DАZО-4-450UК-8У1	400	750	6 000
IDF-22-2-0,62P (IDF-22-2-0,62PGМ)	226 000	2 168	85	600	DАZО-4-450Х-10У1	250	600	6 000	15 950 (13 950)
	283 000	3 400		750	АОD-400/200-8/10У1	400/200	750/600	6 000
	283 000	3 400		750	DАZО-4-450УК-8У1	400	750	6 000
IDF-24-2-0,62 (IDF-24-2-0,62GМ)	293 900	2 365	85	600	АОD-400-10У1	400	600	6 000	18 200 (15 600)
	368 000	3 707		750	АОD-630/400-8/10У1	630/400	750/600	6 000
					АОD-800Х-8/10У1	630/400	750/600	6 000
					2АDО-800/500-6000- 8/10У1	800/500	750/600	6 000
					DАZО-4-560Х-8У1	630	750	6 000
					DАZО-4С-560Х-8У1	630	750	6 000
					DАZО-4-560Х-8ДУ1	630	750	10 000
IDF-26-2-0,62 (IDF-26-2-0,62GМ)	372 970	2 770	85	600	DАZО-4-560Х-10У1	500	600	6 000	25 100 (22 200)
	467 000	4 343		750	АОD-1000/500-8/10У1	1 000/500	750/600	6 000
					2АDО-С-1000/630- 6000-8/10У1	1 000/630	750/600	6 000
					DАZО-4-560У-8У1	1 000	750	6 000
					2АDО-1000-6000-8У1	1 000	750	6 000
					DАZО-4-560У-8ДУ1	1 000	750	10 000
					DАZО-4С-560У-8ДУ1	1 000	750	10 000
IDF-26-2-0,62P (IDF-26-2-0,62PGМ)	372 970	3 093	85	600	DАZО4-560Х-10У1	500	600	6 000	25 200
	467 000	4 850		750	АОD-1000/500?8/10У1	1 000/500	750/600	6 000
					2АDО-С-1000/630- 6000-8/10У1	1 000/630	750/600	6 000
					DАZО4-560У-8У1	1 000	750	6 000
					2АDО-1000-6000-8У1	1 000	750	6 000
					DАZО4-560U-8DU1	1 000	750	10 000
					DАZО4С-560U-8DU1	1 000	750	10 000
IDF-28,8-2-0,936	870 000	4 900	84	750	–	–	750	–	32 830
IDF-38-2 (IDF-38-2ГМ)	1 102 150	6 120	85	600	АО-5000/2500- 750/600У1	5 000/ 2 500	750/600	6 000	64 350 (61 330)
IDF-38-2 (IDF-38-2ГМ)	1 380 000	9 600	85	750	АО-5000/2500- 750/600У1	5 000/ 2 500	750/600	6 000	64 350 (61 330)

The characteristics are given in the mode of maximum efficiency for the moving medium with parameters: Bar=760 mm Hg. art. and t=100°C.

**IDF-2 №22-26F**
Machine size	Capacity, m3/s	Full pressure, Pa	Maximum efficiency, not less, %	Rotational speed, rpm	Electric motor				Weight without electro motor, kg
Machine size	Capacity, m3/s	Full pressure, Pa	Maximum efficiency, not less, %	Rotational speed, rpm	Size	Power, kWt	Rotational speed, rpm	Voltage, V	Weight without electro motor, kg
IDF-22-2F (IDF-22-2FGМ)	182 890	3 080	77	600	DАZО-4-450UК-8U1	400	600	6 000	16 000 (14 000)
	229 000	4 829		750	DАZО4-560Х-8U1	630	750	6 000
	229 000	4 829		750	DАZО4-560Х-8DU1	630	750	10 000
IDF-24-2F (IDF-24-2FGМ)	237 200	3 665	77	600	АОD-800Х-8/10U1	630/400	750/600	6 000	17 550 (15 650)
					2АDО-800/500-6000- 8/10U1	800/500	750/600	6 000
					2АDО-C-1000/630- 6000-8/10U1	1 250/800	750/600	6 000
	297 000	5 747		750	DАZО4-560Х-8U1	630	750	6 000
					DАZО4-560Х-8DU1	630	750	10 000
					DАZО4-560Y-8U1	1 000	750	6 000
					DАZО4-560U-8DU1	1 000	750	10 000
IDF26-2F (IDF-26-2FGМ)	301 890	4 300	77	600	АОD-1000/500-8/10U1	1 000/500	750/600	6 000	23 750 (21 750)
	378 000	6 745		750	DАZО4-560U-8-1	1 000	750	6 000
					DАZО4-560U-8DU1	1 000	750	10 000
					АDО-1600/750U1	1 600	750	6 000

The characteristics are given in the mode of maximum efficiency for the moving medium with parameters: Bar=760 mm Hg. art. and t=100°C.

**IDF-2 №22-38**

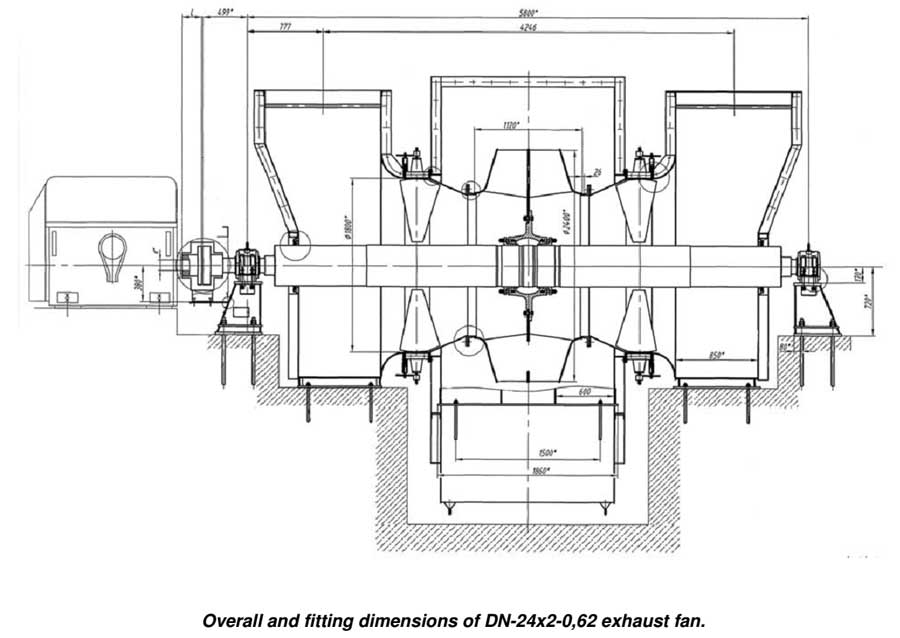

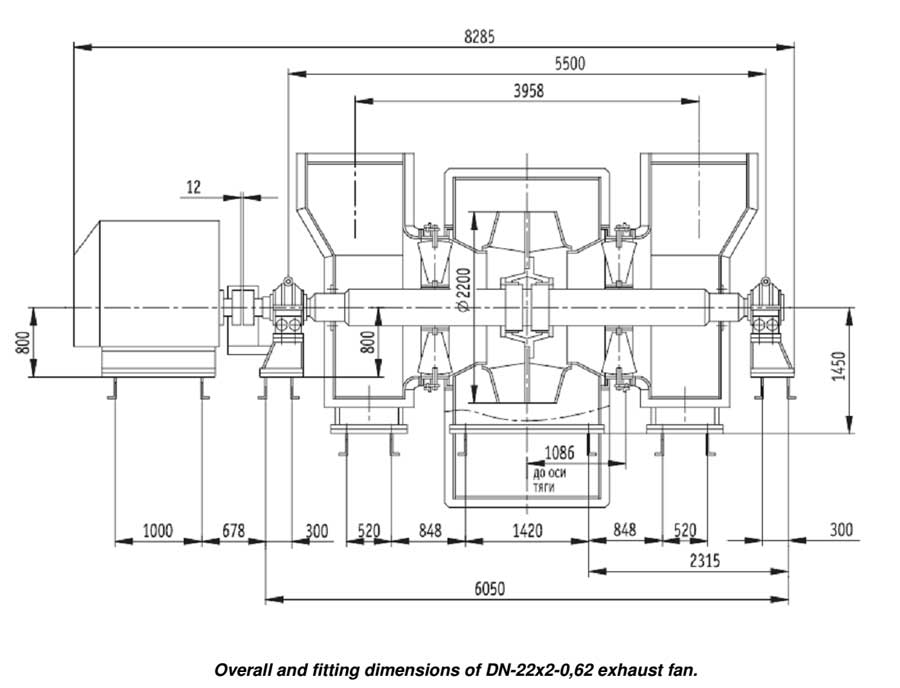

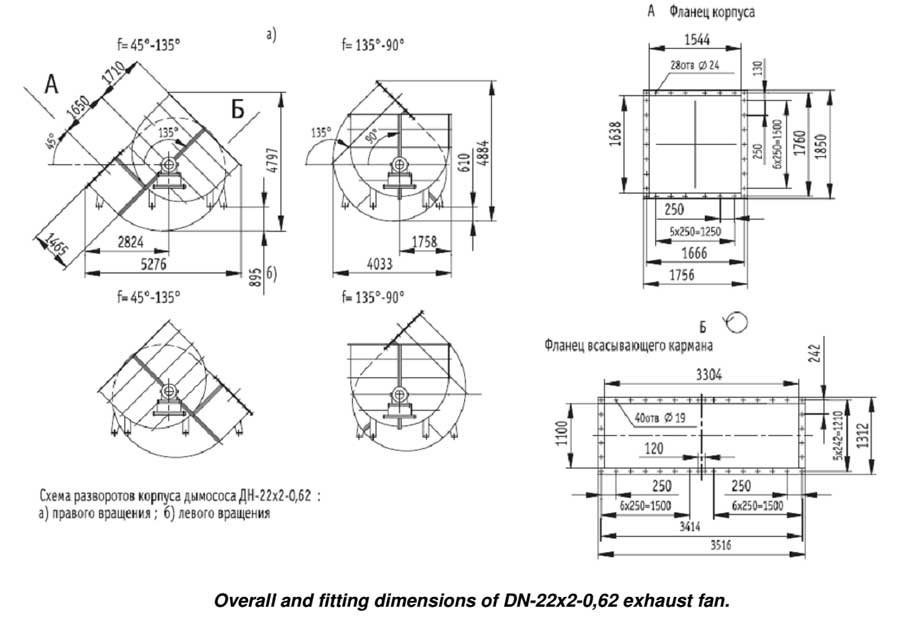

Machine size	ϕ	Dimension, mm
Machine size	ϕ	B1	B2	B3	B4	H2	H3	H4	L1	L1′	L2	L2′	L3	L3′	L4	L4′	A	A1	b
IDF-26-2-0,62 IDF-26-2-0,62GМ IDF-26-2-0,62P IDF-26-2-0,62PGМ IDF-26-2F IDF-26-2FGМ	45°-135°	2 136	2 748	1 650	676	1 560	1 560	1 226	1 700	1 700	878	878	700	700	597	597	6 100	4 535	1 950
	45°-180°	2 136	2 748	1 490	474	2 037	1 560	1 226	1 700	1 700	878	718	700	1 400	597	57
	60°-180°	2 058	2 633	1 490	474	2 037	1 560	1 067	1 700	1 700	878	718	700	1 400	597	57
	90°-135°	1 897	2 475	1 650	676	1 560	1 560	930	1 700	1 700	878	878	700	700	597	597
	90°-180°	1 897	2 475	1 490	474	2 037	1 560	930	1 700	1 700	878	718	700	1 400	597	57
	ϕ	Dimension, mm																N	N2
	ϕ	B5	D	d	d2	C	E	C2	E2	T1	T2	T3	T4	H1	h	h2	L5	N	N2
	–	1 020	2 600	19	19	1 816	1 935	3 900	1 300	1 932	2 047	4 020	1 420	800	1 716	1 920	300	28	36
IDF-24-2-0,62 IDF-24-2-0,62GМ IDF-24-2F IDF-24-2FGМ	45°-45°	1 985	2 548	550	1 450	1 450	1 450	1 110	1 500	1 500	873	873	650	650	557	557	5 800	4 246	1 800
	45°-90°	1 985	2 548	985	985	1 270	1 450	1 130	1 500	1 500	873	873	650	650	557	557
	45°-135°	1 985	2 548	1 450	550	1 450	1 450	1 110	1 500	1 500	873	873	650	650	557	557
	45°-180°	1 985	2 548	1 550	364	1 900	1 450	1 110	1 500	1 500	873	723	650	1 300	557	57
	60°-180°	1 913	2 443	1 550	364	1 900	1 450	960	1 500	1 500	873	723	650	1 300	557	57
	90°-135°	1 752	2 284	1 450	550	1 450	1 450	850	1 500	1 500	873	873	650	650	557	557
	90°-135°	1 752	2 284	1 550	364	1 900	1 450	850	1 500	1 500	873	723	650	1 300	557	57
	ϕ	Dimension, mm																N	N2
	ϕ	B5	D	d	d2	C	E	C2	E2	T1	T2	T3	T4	H1	h	h2	L5	N	N2
	–	900	2 400	19	19	1 676	1 786	3 600	1 200	1 800	1 920	3 720	1 320	720	1 586	1 815	310	24	34
IDF-28,8-2-0,936	45°-135°	2 505	3 232	2 100	850	1 950	1 850	1 350	1 800	1 800	969	969	700	700	541	541	6 380	4 888	2 310
	ϕ	Dimension, mm																N	N2
	ϕ	B5	D	d	d2	C	E	C2	E2	T1	T2	T3	T4	H1	h	h2	L5	N	N2
	45°-135°	1 300	2 880	19	19	2 155	2 100	4 608	1 384	2 277	2 216	4 728	1 500	980	2 035	2 350	420	48	19
IDF-22-2-0,62 IDF-22-2-0,62GМ IDF-22-2-0,62P IDF-22-2-0,62PGМ IDF-22-2F IDF-22-2FGМ	45°-135°	1 860	2 387	1 400	576	1 300	1 300	1 063	1 420	1 420	848	848	520	520	602	602	5 500	3 958	1 650
	45°-180°	1 860	2 387	1 400	406	1 710	1 300	1 063	1 420	1 420	848	669	520	1 200	602	101
	60°-180°	1 795	2 283	1 400	406	1 710	1 300	800	1 420	1 420	848	669	520	1 200	602	101
	90°-135°	1 649	2 140	1 400	576	1 300	1 300	710	1 420	1 420	848	848	520	520	602	602
	90°-180°	1 649	2 140	1 400	406	1 710	1 300	710	1 420	1 420	848	669	520	1 200	602	101
	ϕ	Dimension, mm																N	N2
	ϕ	B5	D	d	d2	C	E	C2	E2	T1	T2	T3	T4	H1	h	h2	L5	N	N2
	–	900	2 200	19	19	1 536	1 638	3 300	1 100	1 652	1 750	3 420	1 220	720	1 456	1 710	310	22	30
IDF-38-2 IDF-38-2GМ	45°-135°	2 595	3 500	2 900	1 425	1 725/ 2 500	1 600	1 560	2 000	2 000	1 516	1 796	?	?	1 029	749	7 400	5 592	2 870
	ϕ	Dimension, mm																N	N2
	ϕ	B5	D	d	d2	C	E	C2	E2	T1	T2	T3	T4	H1	h	h2	L5	N	N2
	45°-135°	1 350	3 750	22	22	2 675	2 590	5 722	1 710	2 838	2 726	5 866	1 846	830	2 520	2 820	550	48	22

Aerodynamic performance

IDF-22×2-0,62

IDF-22×2-0,62P

IDF-24×2-0,62

IDF-26×2-0,62

IDF-26×2-0,62P

IDF-28,8×2-0,936

IDF-38×2

IDF-22x2F

IDF-24x2F

IDF-26x2F

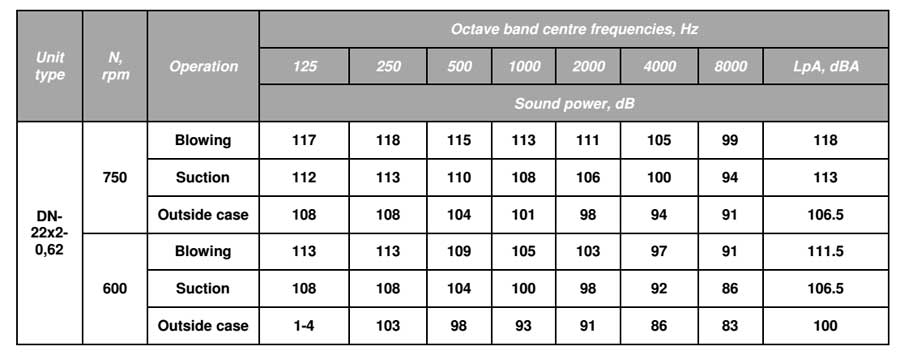

Acoustic performance

**IDF-2 №22-28,8, IDF-2 №22-26F**
Machine size	Rotational speed, rpm	Measuring area	Values of sound power levels Lpi, dB in octave bands f, Hz							LpA, dB
Machine size	Rotational speed, rpm	Measuring area	125	250	500	1000	2000	4000	8000	LpA, dB
IDF-22-2-0,62 IDF-22-2-0,62GМ	600	Discharge	113	113	109	105	103	97	91	111
		Suction	108	108	104	100	98	92	86	106
		Around the hull	104	103	98	93	91	86	83	100
	750	Discharge	117	118	115	113	111	105	99	118
		Suction	112	113	110	108	106	100	94	113
		Around the hull	108	108	104	101	98	94	91	107
IDF-24-2-0,62 IDF-24-2-0,62GМ	600	Discharge	116	116	112	108	105	100	94	115
		Suction	111	111	107	103	101	95	89	110
		Around the hull	107	106	101	96	94	89	86	103
	750	Discharge	120	121	118	116	114	108	102	121
		Suction	115	116	113	111	110	103	97	116
		Around the hull	111	111	107	104	101	97	94	110
IDF-26-2-0,62 IDF-26-2-0,62GМ	600	Discharge	119	119	115	111	109	103	97	118
		Suction	114	114	110	106	104	98	92	113
		Around the hull	110	109	104	99	97	92	89	106
	750	Discharge	123	124	121	119	116	111	105	124
		Suction	118	119	116	114	111	106	100	119
		Around the hull	114	114	110	107	104	100	97	113
IDF-28,8-2-0,936	750	Discharge	122	124	125	122	117	114	107	127
		Suction	121	123	121	121	114	111	105	124
		Around the hull	118	118	114	114	110	105	98	118
IDF-22-2F IDF-22-2FGМ	750	Discharge	123	125	125	123	120	114	110	128
		Suction	119	114	120	118	115	109	105	122
		Around the hull	109	114	107	105	102	100	90	111
IDF-24-2F IDF-24-2FGМ	750	Discharge	126	129	128	126	123	117	113	131
		Suction	122	124	123	121	118	112	108	126
		Around the hull	112	117	110	108	105	103	93	114
IDF-26-2F IDF-26-2FGМ	750	Discharge	129	132	131	129	126	120	116	134
		Suction	125	126	126	123	121	115	111	128
		Around the hull	115	120	113	111	108	106	96	117

NOTE: Acoustic characteristics are given for conditions: the axial guide unit is fully open, Bar=760 mm Hg. art., the temperature of the moving medium t=100°C.
