Calorifers КP

КP-SК 3-6 КP-SК 4-6
КP-SК 3-7 КP-SК 4-7
КP-SК 3-8 КP-SК 4-8
КP-SК 3-9 КP-SК 4-9
КP-SК 3-10 КP-SК 4-10
КP-SК 3-11 КP-SК 4-11
КP-SК 3-12 КP-SК 4-12
Download the description in PDF

For an accurate selection of this type of equipment, we suggest that you fill out a questionnaire and send it to our specialists in the order

Download the questionnaire
Order button

Do you have questions? Call:

+7 (4942) 622-023

Air-heaters КP-SК, similar to air-heaters VNP, having such a heat-transfer agent as steam, are designated for air heating in the heating, ventilation and conditioning systems. Air should have maximum permissible concentration of chemically active materials as per GOST 12.1.005-76, dust content not more than 0,5 mg/m3 and no adhesive substances and fibrous materials. Air-heaters are designated for operation under conditions of cold climate of the 3rdcategory of location as per GОSТ15150-69.

Steam calorifers КP-SК, similar to calorifers VNP, should not be installed on the objects, which generate outer vibration with mean square value of more than 2 mm/sec. In winter period operation of the calorifers кскshould be started with the rate of temperature rise not more than 30°С per hour.

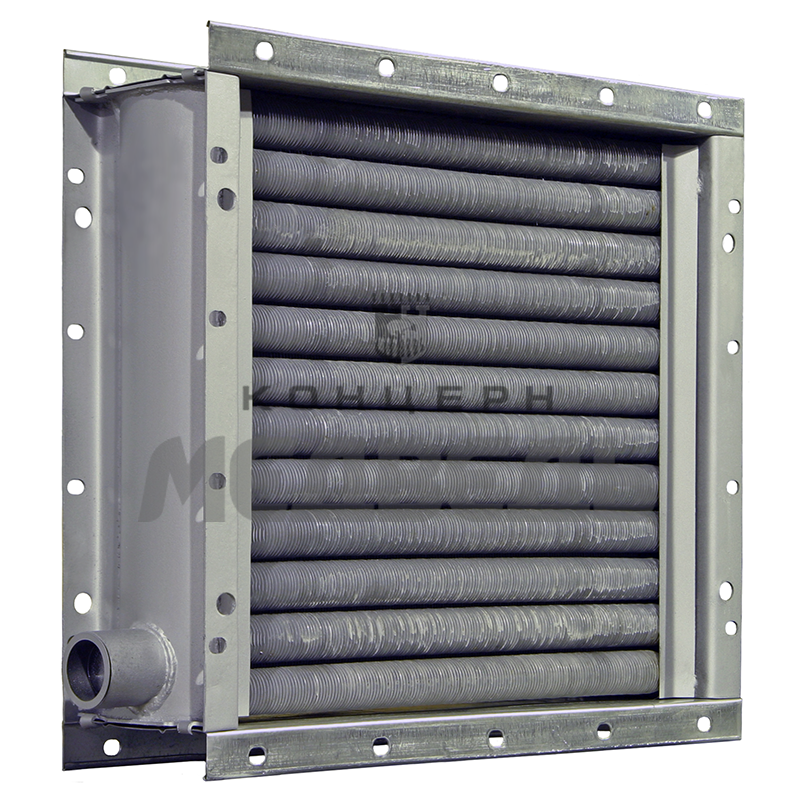

Steam calorifers КP-SК3 have three and КP-SК4 have four rows of heat-transferring elements made of steel tube 16х1,2 with aluminium helical rolled ribbing ~29 mm. Air-heater consists of heattransferring elements, tube grids, covers and detachable zinc-coated shields. Oval holes 12х16 located from the sides of tube grids and detachable shields are designated for air-heaters installation and fastening during installation.

Air-heaters VNP, КP-SК made of stainless steels are manufactured of steelstainless tube 16х1,5 12Х18Н10Тand aluminium rolled ribbing with nominal diameterof 39 mm, correspondingly. Grid (cover) is made of stainless steel 12Х18Н10Т. Shield (side panel) – from zinc-coated metal.

Steam calorifers КP-SК 3 and КP-SК 4 are made of hydraulically tested and heat-treated tubes manufactured by OJSC “Pervouralskiy Novotrubniy Zavod”; these tubes are made according to GOST 10704-91В/ГОСТ10705-80.

Specifications of calorifers КP 2, КP 3 and КP 4

Specifications are given for the following mode:
•  Air temperature at inlet – minus 20° С;
•  Steam pressure at inlet – 0,1 MPa;
•  Mass velocity in incoming flow – 3,6 kg/m2sec;
•  Aerodynamic resistance of 3-row calorifers – 53,5+4,28;
•  Aerodynamic resistance of 4-row calorifers – 68,2+5,46.
Heat-transfer agent – dry saturated (or superheated) steam having the following
parameters:
•  Operating pressure, not more – 1,2 MPa;
•  Temperature, not more – 190° С;
•  Velocity of heat-transfer agent in tubes – 0,32±0,016 m/sec .
Reliability indexes:
•  Mean lifetime, years, not less – 6;
•  Complete specified service life, hours, not less – 9600;
•  Specified no-failure operating time, hours, not less – 1500;
•  Mean restoration time, hours, not more – 12.

Attention!  Air-heaters  КP-SК, by their main specifications, may completely replace such analogues as VNP113. Example: КP4-5-SK-01UЗМcorresponds to VNP 113-405-01U3.

Specifications of calorifers KP2

Name of
parameter
KP2-1-SK
01 UЗ
КP 2-2-SK
01 UЗ
КP 2-3-SK
01 UЗ
КP 2-4-SK
01 UЗ
КP 2-5-SK
01 UЗ
КP 2-6-SK
01 UЗ
КP 2-7-SK
01 UЗ
КP 2-8-SK
01 UЗ
КP 2-9-SK
01 UЗ
КP 2-10-SK
01 UЗ
КP 2-11-SK
01UЗ
КP 2-12-SK
01 UЗ
Air capacity, m3/hour 2000 2500 3150 4000 5000 2500 3150 4000 5000 6300 16000 25000
Heat capacity,KW
 28,3 36,5 46,3 58,1 76,7 42,5 54,9 67,2 81,0 106,7 280,0 432,0
Area of heatexchange surface, m2
 6,7 8,3 9,9 11,5 14,8 9,0 11,2 13,4 15,6 20,0 58,7 88,7
Area of front section, m2
 0,197 0,244 0,290 0,337 0,430 0,267 0,329 0,392 0,455 0,581 1,660 2,448
Area of section (mean value)
for heattransfer agent flow, m2
 0,00247 0,00247 0,00247 0,00247 0,00247 0,00334 0,00334 0,00334 0,00334 0,00334 0,00683 0,01031
Number of runs
for heattransfer agent
 1 1 1 1 1 1 1 1 1 1 1 1
Weight, kg, not more
 21 24 27 30 36 27 31 35 38 46 126 184

Specifications of calorifers КP3

Name of
parameter
КP 3-1-SК
01 UЗ
КP 3-2-SК
01 UЗ
КP3-3-SК
01 UЗ
КP 3-4-SК
01 UЗ
КP 3-5-SК
01 UЗ
КP 3-6-SК
01 UЗ
КP 3-7-SК
01 UЗ
КP 3-8-SК
01 UЗ
КP 3-9-SК
01 UЗ
КP3-10-SК
01 UЗ
КP 3-11-SК
01 UЗ
КP 3-12-SК
01 UЗ
Air capacity, m3/hour
 2000 2500 3150 4000 5000 2500 3150 4000 5000 6300 16000 25000
Heat capacity,KW
 46,1 56,5 68,8 83,2 103,5 59,4 73,4 90,0 107,5 134,5 358,3 552,1
Area of heatexchange surface, m2
 10,2 12,7 15,2 17,6 22,6 13,4 16,6 20,0 23,2 29,6 86,3 130,1
Area of front section, m2
 0,197 0,244 0,290 0,337 0,430 0,267 0,329 0,392 0,455 0,581 1,660 2,448
Area of section (mean value)
for heattransfer agent  flow, m2
 0,00378 0,00378 0,00378 0,00378 0,00378 0,00508 0,00508 0,00508 0,00508 0,00508 0,01031 0,01554
Number of runs
for heattransfer agent
 1 1 1 1 1 1 1 1 1 1 1 1
Weight, kg, not more
 28 32 36 41 50 35 40 45 50 60 155 230

Specifications of calorifers КP4

Name of
parameter
КP 4-1-SК
01 UЗ
КP 4-2-SК
01 UЗ
КP 4-3-SК
01 UЗ
КP4-4-SК
01 UЗ
КP 4-5-SК
01 UЗ
КP 4-6-SК
01 UЗ
КP 4-7-SК
01 UЗ
КP 4-8-SК
01 UЗ
КP 4-9-SК
01 UЗ
КP 4-10-SК
01 UЗ
КP 4-11-SК
01UЗ
КP 4-12-SК
01 UЗ
Air capacity, m3/hour
 2000 2500 3150 4000 5000 2500 3150 4000 5000 6300 16000 25000
Heat capacity, KW
 52,8 67,9 79,9 97,7 122,1 68,0 84,5 105,2 126,3 158,5 424,0 656,1
Area of heatexchange surface, m22
 13,4 16,6 19,8 23,0 29,5 17,6 21,8 26,2 30,4 39,0 114,2 172,5
Area of front section, m2
 0,197 0,244 0,290 0,337 0,430 0,267 0,329 0,392 0,455 0,581 1,660 2,448
Area of section (mean value)
for heattransfer agent flow, m2
 0,00494 0,00494 0,00494 0,00494 0,00494 0,00688 0,00688 0,00688 0,00688 0,00688 0,01366 0,02063
Number of runs for heattransfer agent
 1 1 1 1 1 1 1 1 1 1 1 1
Weight, kg, not more
 31 36 41 46 56 40 45 50 60 75 200 290

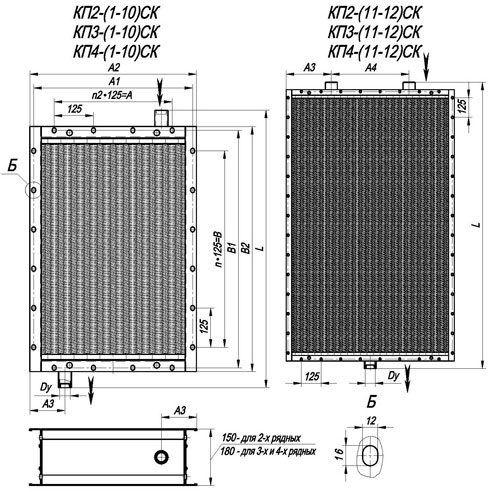

Overall dimensions of calorifers КP2, КP3 and КP4

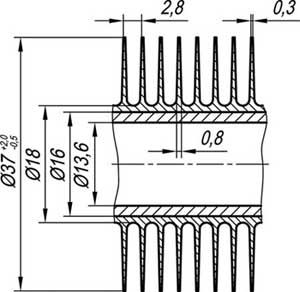

Ribbing of heat-transferring element

Dimen sions, mm
 КP2-1
КP3-1
КP4-1		 КP2-2
КP3-2
КP4-2		 КP2-3
КP3-3
КP4-3		 КP2-4
КP3-4
КP4-4		 КP2-5
КP3-5
КP4-5		 КP2-6
КP3-6
КP4-6		 КP2-7
КP3-7
КP4-7		 КP2-8
КP3-8
КP4-8		 КP2-9
КP3-9
КP4-9		 КP2-10
КP3-10
КP4-10		 КP2-11
КP3-11
КP4-11		 КP2-12
КP3-12
КP4-12
А 250 250 250 250 250 375 375 375 375 375 875 1375
А1±3 426 426 426 426 426 551 551 551 551 551 1050 1551
А2 450 450 450 450 450 575 575 575 575 575 1075 1575
А3 82,5 82,5 82,5 82,5 82,5 82,5 82,5 82,5 82,5 82,5 290 415
А4 – – – – – – – – – – 495 745
B 500 625 750 875 1125 500 625 750 875 1125 1625 1625
B1±3 578 703 828 953 1203 578 703 828 953 1203 1703 1703
B2 602 727 852 977 1227 602 727 852 977 1227 1727 1727
L 700 825 950 1075 1325 700 825 950 1510 1325 1825 1825
Dу 50 50 50 50 50 50 50 50 50 50 65 80
n 4 5 6 7 9 4 5 6 7 9 13 13
n2 2 2 2 2 2 3 3 3 3 3 7 11
V m3 0,057 0,067 0,077 0,122 0,107 0,072 0,80 0,093 0,106 0,132 0,343 0,503
