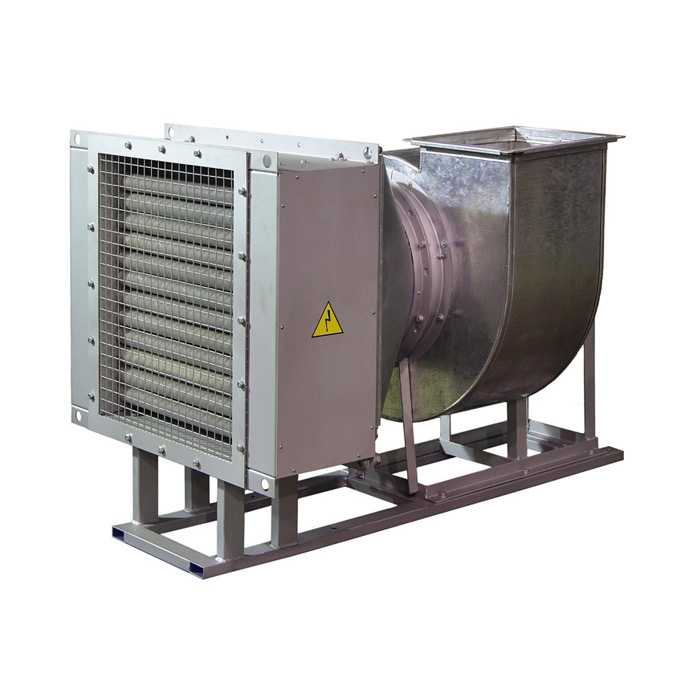

Electric air heating units UVNE
| УВНЭ-15-02 UHL 4 | УВНЭ-30-01 UHL 4 |
| УВНЭ-30-02 UHL 4 | УВНЭ-45-01 UHL 4 |
| UVNE-45-02 UHL 4 | UVNE-65-01 UHL 4 |
| UVNE-65-02 UHL 4 | UVNE-90-01 UHL 4 |
For an accurate selection of this type of equipment, we suggest that you fill out a questionnaire and send it to our specialists in the order
Download the questionnaireDo you have questions? Call:
+7 (4942) 622-023Electric air-heating units (UVNE) with radial fans VC14-46 and control box are designated for heating the air in air-heating systems of industrial, public, amenity, cultural, agricultural premises, as well as in sales outlets, repair shops, garages and as a part of process equipment. At that ambient environment should not be dangerously explosive andshould not contain current-conducting dust.
Operation conditions – moderate-cold climate (UHL) of the 4th category of location as per GOST15150-69.
Units are equipped with electric air-heaters of VNE series.
Specifications of electric air heating units UVNE
| Product name | Fan name | Power fan, KW |
Rate of rotation, min
|
| UVNE-15-02 UHL4 | VC 14-46 №3,15 | 1,1 | 1500 |
| UVNE-30-01 UHL4 | 1,1 | ||
| UVNE-30-02 UHL4 | 1,1 | ||
| UVNE-45-01 UHL4 | 2,2 | ||
| UVNE-45-02 UHL4 | 2,2 | ||
| UVNE-65-01 UHL4 | VC 14-46 №4 | 4 | |
| UVNE-65-02 UHL4 | 4 | ||
| UVNE-90-01 UHL4 | 7,5 |
Note: drop in temperatures of supplied and discharged air is indicated for minimum air capacity, 100% of air-heater capacity taking into account positive tolerances for supply voltage and electric-heater power when supplied air temperature is 0 ° С.
| Name of parameter | Parameter value | |||
| UVNE-30-01 | UVNE-45-01 | UVNE65-01 | UVNE-90-01 | |
| Installed capacity, kW | 23,6/22,5 | 47,2/45,0 | 71,5/67,5 | 97,5/90,0 |
|
Air capacity, m3/h, not less
|
2000 | 3000 | 4000 | 7500 |
|
Temperature drop at supplied and
discharged air, ° С, not more
|
24 | 51 | 59 | 40 |
|
Aerodynamic resistance, Pa, not more
|
150 | 110 | 95 | 175 |
|
Design air pressure provided by fan, Pa,
not more
|
500 | 800 | 1400 | 1500 |
| Rated main voltage, V | 380±28,5 | |||
| Current frequency, Hz | 50 | |||
| Number of phases | 3 | |||
| Weight, kg, not more | 66 | 79 | 141 | 170 |
| Name of parameter | Parameter value | |||
| UVNE-15-02 | UVNE-30-02 | UVNE-45-02 | UVNE-65-02 | |
| Installed capacity, kW | 15,5/14,4 | 29,9/28,8 | 45,4/43,2 | 61,6/57,6 |
|
Air capacity, m3/h, not less
|
2000 | 2500 | 3000 | 4000 |
|
Temperature drop at
supplied and
discharged air, ° С, not
more
|
24 | 39 | 49 | |
|
Aerodynamic
resistance, Pa, not more
|
155 | 85 | 65 | |
|
Design air pressure
provided by fan, Pa, not
more
|
500 | 800 | 1400 | |
| Rated main voltage, V | 380±28,5 | |||
| Current frequency, Hz | 50 | |||
| Number of phases | 3 | |||
| Weight, kg, not more | 66 | 74 | 86 | 148 |
Overall dimensions of air-heater units UVNE
|
Product name
|
Dimensions, mm
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A
|
H1
|
H2
|
L1
|
L2
|
a
|
b
|
c
|
d
|
e
|
l1
|
l2
|
|
|
UVNE-15-02 UHL4
|
390
|
560
|
660
|
1335
|
1340
|
340
|
221
|
241
|
261
|
65
|
600
|
1200
|
|
UVNE-30-01 UHL4
|
||||||||||||
|
UVNE-30-02 UHL4
|
625
|
|||||||||||
|
UVNE-45-01 UHL4
|
1350
|
|||||||||||
|
UVNE-45-02 UHL4
|
695
|
|||||||||||
|
UVNE-65-01 UHL4
|
322
|
845
|
852
|
1405
|
1380
|
290
|
280
|
300
|
320
|
40
|
650
|
1300
|
|
UVNE-65-02 UHL4
|
910
|
|||||||||||
|
UVNE-90-01 UHL4
|
352
|
1455
|
1420
|
320
|
160
|
|||||||
