Cyclone dust separators of CN-15 type

Download the description in PDF

For an accurate selection of this type of equipment, we suggest that you fill out a questionnaire and send it to our specialists in the order

Download the questionnaire
Order button

Do you have questions? Call:

+7 (4942) 622-023

General information

There are three types of CDSs, designed by R&D Laboratories  NIIOGAZ, which differ in the angle of the feeder – CN-11 (11°), CN-15 (15°), CN-24 (24°).
– They can have right (clockwise) rotation of the vortex and left (counterclockwise).

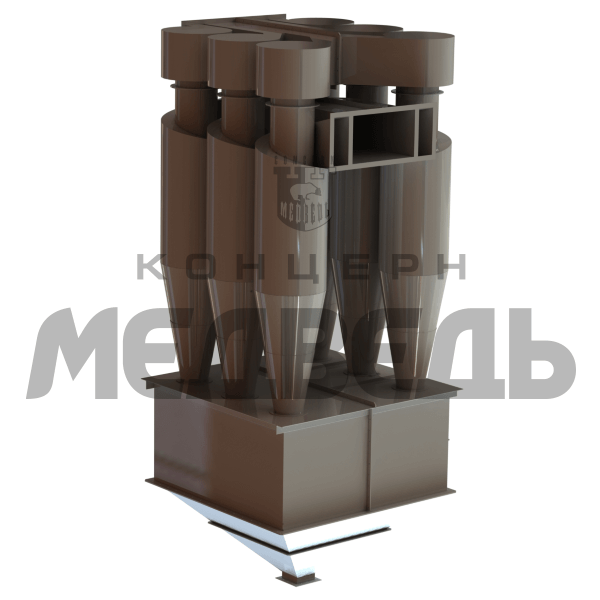

– They can be single or gang (2, 4, 6,8 CDSs).
– The purified-gas chamber can be coiled or in the form of the box, single CDSs are only coiled.
– Bunkers have the form of a pyramid.
– Assembled either on the pumping section or the sucking section.

Description

CDSs, designed by R&D Laboratories  NIIOGAZ,  are used for dry purification of gases produced during various industrial operation (drying, baking, agglomeration, fuel burning etc); to purify aspiration air  in  many  industries  (metallurgy;  chemical,  oil  and  engineering  industries),  in  various  grinding  andbreaking devices.

Variations

– carbon steel;
– stainless steel;
– CN-15 can be equipped with the explosive valve and the minimal bunker size to prevent explosion of the collected dust.

Technical specifications of CN-15

Acceptable dust content, g/m3
Low-adhesion dust
 No more than 1000
Medium-adhesion dust
 250
Temperature of the handled gas, C
 No more than 400
Maximum pressure (underpressure) kPa
 500 (5)
Flow-friction characteristics
Single CDSs
 147
Gang CDss
Coiled
 175
Box collector
 182
Optimal speed
Normal mode V(Vex)
 3,5 (16,0)
Abrasive dust V(Vex)
 2,5 (11,4)

Technical specifications of  CN-15

Type
Air cleaning capability, m3/h
 Weight, kg
CN 15-300 828-954 30
CN 15-400 1450-1691 70
CN 15-450 1835-2141 80
CN 15-500 2270-2645 105
CN 15-550 2740-3200 130
CN 15-600 3262-3810 145
CN 15-650 3825-4460 170
CN 15-700 4400-5180 200
CN 15-750 5100-5950 230
CN 15-800 5800-6740 288
CN 15-900 5700-9200 420
CN 15-1000 7100-11300 525
CN 15-1200 10200-16200 757
CN 15-1400 13900-22200 1055

Technical specifications of  CN-15х1UP

Type Air cleaning capability, m3/h Weight, kg
CN 15-300х1UP 828-954 110
CN 15-400х1UP 1450-1691 150
CN 15-450х1UP 1835-2141 215
CN 15-500х1UP 2270-2645 250
CN 15-550х1UP 2740-3200 345
CN 15-600х1UP 3262-3810 390
CN 15-650х1UP 3825-4460 465
CN 15-700х1UP 4400-5180 510
CN 15-750х1UP 5100-5950 650
CN 15-800х1UP 5800-6740 715
CN 15-900х1UP 5700-9200 970
CN 15-1000х1UP 7100-11300 1340
CN 15-1200х1UP 10200-16200 1900
CN 15-1400х1UP 13900-22200 2130

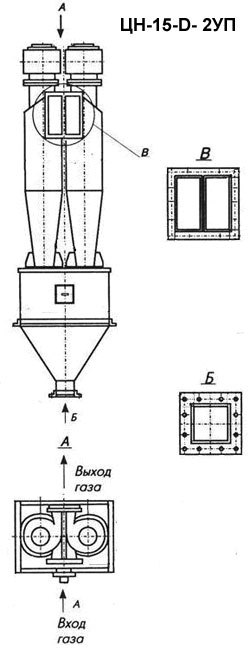

Technical specifications of  CN-15х2UP, CN-15х2SP

Type Air cleaning capability, m3/h Weight, kg
Coiled and pyramidal bunker
CN 15-300х2UP 1656-1908 270
CN 15-400х2UP 2900-3382 440
CN 15-500х2UP 4540-5290 660
CN 15-550х2UP 5480-6400 765
CN 15-600х2UP 6528-7620 870
CN 15-650х2UP 7650-8920 995
CN 15-700х2UP 8800-10360 1120
CN 15-750х2UP 10200-11900 1280
CN 15-800х2UP 11600-13500 1440
CN 15-900х2UP 10200-11900 1780
Exhaust upward and pyramidal bunker
CN 15-300х2SP 1656-1908 290
CN 15-400х2SP 2900-3382 450
CN 15-500х2SP 4540-5290 650
CN 15-550х2SP 5480-6400 745
CN 15-600х2SP 6528-7620 840
CN 15-650х2SP 7650-8920 955
CN 15-700х2SP 8800-10360 1070
CN 15-750х2SP 10200-11900 1225
CN 15-800х2SP 11600-13500 1380
CN 15-900х2SP 10200-11900 1700

Technical specifications of  CN-15х4UP, CN-15х4SP

Type Air cleaning capability, m3/h Weight, kg
Coiled and pyramidal bunker
CN 15-400х4UP 5800-6764 820
CN 15-450х4UP 7340-8564 1005
CN 15-500х4UP 9080-10580 1190
CN 15-550х4UP 10960-12800 1420
CN 15-600х4UP 13048-15240 1650
CN 15-650х4UP 15300-17840 1905
CN 15-700х4UP 17600-20720 2160
CN 15-750х4UP 20400-23800 2480
CN 15-800х4UP 23200-27040 2800
CN 15-900х4UP 22860-36580 3510
Exhaust upward and pyramidal bunker
CN 15-400х4SP 5800-6764 810
CN 15-450х4SP 7340-8564 965
CN 15-500х4SP 9080-10580 1120
CN 15-550х4SP 10960-12800 1335
CN 15-600х4SP 13048-15240 1550
CN 15-650х4SP 15300-17840 1790
CN 15-700х4SP 17600-20720 2030
CN 15-750х4SP 20400-23800 2330
CN 15-800х4SP 23200-27040 2630
CN 15-900х4SP 22860-36580 3330

Technical specifications of  CN-15х6UP, CN-15х6SP

Type Air cleaning capability, m3/h Weight, kg
Coiled and pyramidal bunker
CN 15-500х6UP 13620-15870 1920
CN 15-550х6UP 16440-19200 2280
CN 15-600х6UP 19572-22860 2640
CN 15-650х6UP 22950-26760 3155
CN 15-700х6UP 26400-31080 3670
CN 15-750х6UP 30600-35700 4090
CN 15-800х6UP 34800-40560 4510
CN 15-900х6UP 34290-54860 5660
Exhaust upward and pyramidal bunker
CN 15-500х6SP 13620-15870 1820
CN 15-550х6SP 16440-19200 2170
CN 15-600х6SP 19572-22860 2520
CN 15-650х6SP 22950-26760 2920
CN 15-700х6SP 26400-31080 3320
CN 15-750х6SP 30600-35700 3795
CN 15-800х6SP 34800-40560 4270
CN 15-900х6SP 34290-54860 5430

Technical specifications of  CN-15х8UP, CN-15х8SP

Type Air cleaning capability, m3/h Weight, kg
Coiled and pyramidal bunker
CN 15-500х8UP 18160-21160 3032
CN 15-750х8UP 40800-47600 6568
CN 15-800х8UP 46400-54080 7376
Exhaust upward and pyramidal bunker
CN 15-500х8SP 18160-21160 3167
CN 15-750х8SP 40800-47600 7052
CN 15-800х8SP 46400-54080 7796

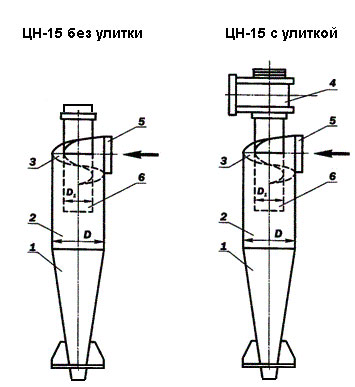

Overall dimensions of CN-15



Overall dimensions of CN-15

Type D d d1 aвx bex L H Hц Hк h в h фл
CN15-100 100 60 30 66 29 90 456 226 200 30 24
CN15-150 150 90 45 99 41 110 684 339 300 45 36
CN15-200 200 120 60 132 52 120 912 452 400 60 48
CN15-250 250 150 75 165 65 150 1140 565 500 75 60
CN15-300 300 180 90 198 78 180 1368 678 600 90 72
CN15-350 350 210 105 231 91 210 1596 791 700 105 84
CN15-400 400 240 120 264 104 240 1824 904 800 120 96
CN15-450 450 270 135 297 117 270 2052 1017 900 135 108
CN15-500 500 300 150 330 130 300 2280 1130 1000 150 120
CN15-550 500 330 165 363 143 330 2508 1243 1100 165 132
CN15-600 600 360 180 396 156 360 2736 1356 1200 180 144
CN15-650 650 390 195 429 169 390 2964 1469 1300 195 156
CN15-700 700 420 210 462 182 420 3192 1582 1400 210 168
CN15-750 750 450 225 495 195 450 3420 1695 1500 225 180
CN15-800 800 480 240 528 208 480 3648 1808 1600 240 192
CN15-900 900 540 270 594 234 540 4104 2034 1800 270 216
CN15-1000 1000 600 300 660 260 600 4560 2260 2000 300 240
CN15-1200 1200 720 360 792 312 720 5472 2712 2400 360 288
CN15-1400 1400 840 420 924 364 840 6384 3164 2800 420 336
CN15-1600 1600 960 480 1056 416 960 7296 3616 3200 480 384
CN15-1800 1800 1080 540 1188 468 1080 8208 4068 3600 540 432
CN15-2000 2000 1200 600 1328 520 1200 9120 4520 4000 600 480

Overview. Overall and fitting dimensions of CN-15-1UP

Type D d
a
(out)
b
(out)
 L L1 H Hц
H
(bn)
 h в А В a b n
CN15-300х1UP 300 180 198 78 180 690 2490 678 896 90 600 600 200 310 3
CN15-350х1UP 350 210 231 91 210 690 2750 791 896 105 600 600 200 310 3
CN15-400х1UP 400 240 264 104 240 690 3000 904 896 120 600 600 200 310 3
CN15-450х1UP 450 270 297 117 270 800 3365 1017 1010 135 700 700 200 310 3
CN15-500х1UP 500 300 330 130 300 800 3600 1130 1010 150 700 700 200 310 3
CN15-550х1UP 550 330 363 143 330 950 4080 1243 1220 165 800 800 200 310 3
CN15-600х1UP 600 360 396 156 360 950 4300 1356 1220 180 800 800 200 310 3
CN15-650х1UP 650 390 429 169 390 1050 4800 1469 1430 195 900 900 200 310 3
CN15-700х1UP 700 420 462 182 420 1050 5080 1582 1430 210 900 900 200 310 3
CN15-750х1UP 750 450 495 195 450 1150 5550 1695 1640 225 1000 1000 200 310 3
CN15-800х1UP 800 480 528 208 480 1150 5800 1808 1640 240 1000 1000 200 310 3
CN15-900х1UP 900 540 594 234 540 1250 6510 2034 1850 270 1100 1100 200 310 3
